Product description

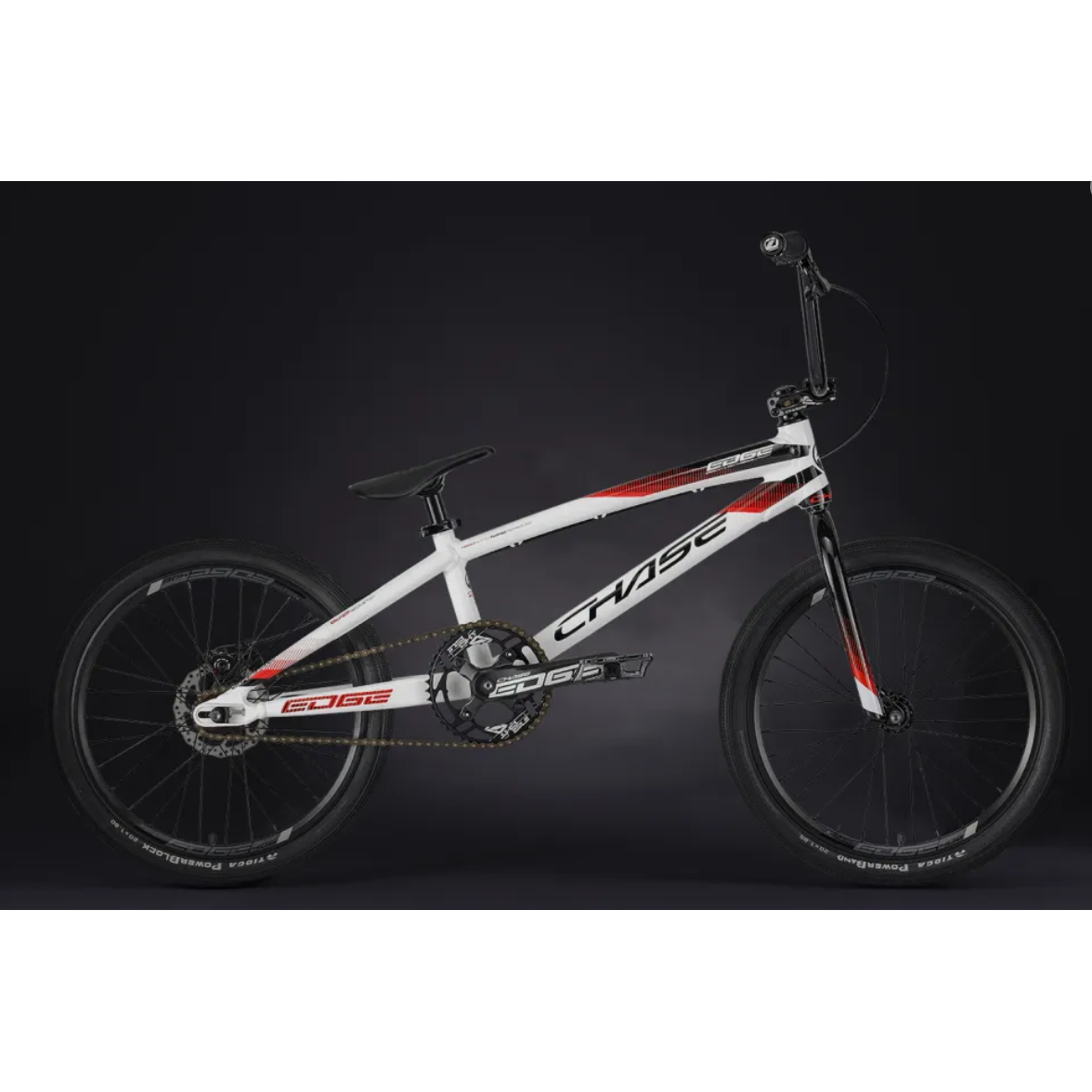

The 2022 Chase Edge is a pure bred BMX race designed machine. It?s our most sought after Race bike for riders looking to get serious about BMX racing. With our deep history in BMX racing and our attention to detail, you know you are getting a top notch bike! Loaded with some of todays top brands in BMX racing, the Chase Edge will give you the edge over your competition and help you get on your way to #winwithChase.
For 2022, the Edge frame now features a new integrated chain tensioner / disc brake mounting system, and always Hydroformed and triple butted tubing. We still are offering 2 Color Choices ? White or Dark blue ? and now features a Mechanical Disc Braking with Triple Precise clutch system rear cassette hub with ISO Brake disc rotor mounting on new enclosed dropouts. Also features some of the best parts made for a complete BMX race bike : TIOGA tires, KMC chain, INSIGHT chainring, grips, and Pivotal seat/seat post combo. All these parts together help give you the Edge over your competition, and to make the CHASE Edge one of the most dialed in complete bikes in BMX.
Specifications
*FRAME:
CHASE Edge Junior 18.75" Top Tube, 6061 T6 Alloy, Integrated 1" Head Tube, Enclosed rear dropouts and Chain tensioner system
*FORK:
CHASE Edge Junior Full Cr-mo, 1" Steer Tube With Tapered Blades
*HEADSET:
Integrated Sealed Bearing
*HANDLEBAR:
CHASE Edge 22.2mm, 4.25" Rise, 24? Wide, 8° Back Sweep, 2° Up Sweep
*GRIPS:
INSIGHT C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug
*STEM:
CHASE Edge 40mm 6061 T6 Alloy Laser Etched Logo
*BB:
113mm Sealed Cartridge Squared BB
*CHAINRING:
INSIGHT 40 Tooth 5 Bolts 110mm 1/2?x3/32? 3mm Alloy Ring
*CRANK:
CHASE Edge 3 Piece Crank 155mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts
*PEDAL:
Platform 9/16?
*CHAIN:
KMC Z1 narrow 1/2?x3/32?
*COG:
16 Tooth
*FRONT HUB:
CHASE Edge Mini, 3/8? Axle, M6 bolts, 24H, Sealed Bearing
*REAR HUB:
CHASE Edge Mini ISO, 3/8? Axle, M6 bolts, 28H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
*SPOKES:
14 Gauge
*NIPPLES:
Brass 14Gx5/8?
*FRONT RIM:
CHASE Edge 118 Double Wall 24H 20?x1-1/8? Presta Valve
*REAR RIM:
CHASE Edge 118 Double Wall 28H 20?x1-1/8? Presta Valve
*FRONT TIRE:
TIOGA PowerBlock 20?x1-1/8?
*REAR TIRE:
TIOGA PowerBlock 20?x1-1/8?
*TUBES:
20?x1-1/8? Presta Valve
*BRAKES:
Mechanical disc caliper, linear-pull lever, 140mm disc rotor, Shimano B01S compatible pads
*SADDLE:
INSIGHT Mini Pivotal
*SEAT POST:
Pivotal 25.4x110mm Alloy
*SEAT CLAMP:
CHASE Edge QR Alloy 28.6mm
