Product description

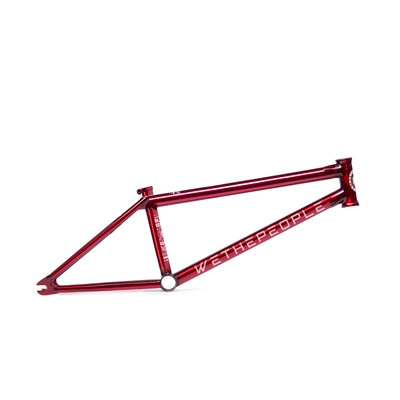

AS SOON AS WE SAT DOWN WITH DILLON LLOYD TO DISCUSS A SIGNATURE LINE OF PARTS, WE KNEW IT WAS DESTINED TO BE SOMETHING TRULY INDESTRUCTIBLE AND A REAL WETHEPEOPLE CLASSIC. THE BUCK FRAME WAS BASED AROUND DILLON'S BLEND OF PROGRESSIVE TECHNICAL RIDING AND ALL-OUT SAVAGERY. WITH A PIERCED TOP TUBE JUNCTION FOR GREATER DURABILITY AND REFRESHED MODERN GEOMETRY, THE ALL-NEW BUCK FRAME IS ONE OF THE LIGHTEST AND TOUGHEST FRAMES IN THE LINE. INCLUDES A LIFETIME GUARANTEE.
>**TUBING:
BUTTED, JAPANESE SEAMLESS 4130 CRMO TUBING
**BOTTOM BRACKET:
74MM MID SIZE, CNC MACHINED AND HEAT-TREATED
**HEAD TUBE:
127MM CNC MACHINED AND HEAT-TREATED, INTEG. H/SET, DRILLED FOR GYRO TABS
**DROPOUTS:
7MM INVESTMENT CAST AND HEAT-TREATED 4130 CRMO
**BRAKES:
PIVOT-3 REMOVABLE BRAKE MOUNTS, FRAME COMES WITHOUT REPL. BRAKE HARDWARE
Specifications
>SPECIAL FEATURES:
**PIERCED TOP TUBE JUNCTION FOR INCREASED STRENGTH AND DURABILITY
**INVESTMENT CAST SEAT CLAMP
**127MM TALL HEAD TUBE FOR LESS SPACERS WITH AN UNCUT FORK, DRILLED FOR GYRO TABS
**EXTRUDED TOP TUBE WITH INTEGRATED THREADS FOR CABLE GUIDES
**OVALISED DENT RESISTANT CHAIN STAYS
**WIDER REAR TRIANGLE ALLOWS CLEARANCE FOR A 2.4" TIRE
**WTP TOP TUBE AND DOWN TUBE GUSSET
**6MM SEAT CLAMP BOLT
**INCLUDES LIFETIME GUARANTEE
COLORS:
TRANSLUCENT RED
/
TRANSLUCENT GREEN
/
BLACK
**WEIGHT:
5.1LBS / 2.30KG (21")
///// **A - TOP TUBE LENGTH:
20.5", 20.75", 21" OR 21.25"
**B - CHAIN STAY LENGTH:
12.9"- 13.25" - OPTIMIZED
FOR 13" W/ 25-9
**C - HEAD TUBE ANGLE:
75.5°
**D - SEAT TUBE ANGLE:
71°
**E - BB HEIGHT:
11.8"
**F - STANDOVER HEIGHT:
9.15"
